Choosing the Right Magazine Spring for Your Marlin Rimfire Rifle: A Complete Reliability Guide

A customer called us last spring with a Marlin Model 60 that had fed flawlessly for eleven years and then, over the course of two range trips, started leaving the last two or three rounds sitting dead in the tube. He'd already bought a new magazine body, a new follower, and cleaned the barrel twice. None of it fixed the problem. The part he hadn't touched was an eighty-cent piece of coiled wire that had simply worn out from roughly 40,000 cycles of loading and firing. That's the part that actually does the work in a rimfire magazine, and it's the part almost every troubleshooting guide skips past on the way to more expensive fixes.

Why the Spring, Not the Magazine, Is Usually the Problem

When a Marlin rimfire rifle starts short-stroking, nose-diving rounds, or failing to lock the bolt back on empty, most owners assume the magazine itself is bad and order a replacement. In our shop's experience servicing several hundred Marlin rimfire magazines a year, the housing and feed lips are fine in the overwhelming majority of cases. The Marlin rimfire magazine spring has simply lost enough force to stop pushing rounds up fast enough to keep pace with the bolt cycle.

Spring steel doesn't fail catastrophically under normal use — it fatigues gradually. Every load-and-fire cycle flexes the coils a fraction of a percent past where they'd naturally sit, and that compounds over thousands of repetitions. A spring rated for roughly 5,000 to 8,000 full-compression cycles before measurable force loss will start showing symptoms well before it snaps or visibly deforms.

That distinction matters for your wallet. A full magazine assembly for a Model 60 or 795 runs $18-$30 depending on the seller. A correctly specified replacement spring runs $6-$14 and solves the same problem in a fraction of the time. Before you order a whole new magazine, pull the floor plate and look at the spring you already have.

How Magazine Springs Actually Work in a Rimfire Action

A magazine spring's job sounds simple — push the follower and stack of cartridges upward — but the engineering has real tolerances. Spring force has to be strong enough to feed the top round into the chamber reliably, but not so strong that it slams the follower and causes the bolt to over-ride the last round or induce feed lip stress.

In Marlin rimfire tube magazines (Model 60, 795, 60SB, 795SS), the spring is a long helical coil, typically .023 to .026 inches of wire diameter, wound to a free length that varies by tube capacity — roughly 13.5 inches for a 14-round tube. That spring sits inside the tube and pushes a friction-fit follower against the cartridge stack from the rear.

In detachable box magazines used on bolt-action Marlin rimfires (XT-22, 981T, 25N, 15YN), the spring is shorter and zigzags side to side inside a narrower body, using heavier wire — commonly .028 to .032 inches — because it has less coil length to generate the same force. The Spring Manufacturers Institute's design guidance on helical compression springs explains why: shorter working length requires either a stiffer wire gauge or a tighter coil pitch to deliver equivalent stored energy, and magazine manufacturers pick wire diameter accordingly.

Recognizing the Signs Before a Range Trip Gets Ruined

Feed problems rarely announce themselves clearly. They show up as small annoyances first, and most shooters chalk them up to ammunition quality or a dirty chamber before they think about the spring. Here's what to watch for:

• Bolt fails to lock back on empty — the follower isn't reaching full travel because the spring lacks force to push it that far.
• Rounds nose-dive or feed at a steep angle — inconsistent upward pressure lets the stack tilt instead of presenting square to the chamber.
• Last 2-3 rounds feed sluggishly — this is the classic sign of a spring near the end of its service life, since force drops fastest as the stack gets short.
• Follower can be pushed down and stays there — under light thumb pressure with an empty magazine, a healthy spring should snap the follower back up. If it stays compressed or returns slowly, the spring has taken a set.

We tell customers to run this thumb test on every magazine at the start of hunting season and before any competition. It takes fifteen seconds and catches most spring failures before they cost you a shot at a coyote or a stage penalty at a match.

Model 60 and 795 Tube Magazine Spring Specifications

The Model 60 and 795 share the same tube-fed magazine architecture, so springs are directly interchangeable between them — a detail that surprises a lot of owners who assume a detachable magazine on the 795 means different internals. Both use a 14-round capacity spring in standard configuration, though some 795 variants shipped with 7-round tubes for states with capacity restrictions, and those use a proportionally shorter spring.

Factory-spec replacement springs for this platform run roughly 13.4-13.6 inches free length with 42-46 active coils in music wire (ASTM A228), which is the same high-carbon spring steel used across most commercial firearm magazine springs for its fatigue resistance. Wire diameter typically sits at .024 inches — thin enough to coil tightly inside a narrow tube but rated for well over 10,000 compression cycles before force degrades below spec.

One detail that trips people up: the follower has a small locking tab or dimple that mates with the spring's terminal coil. If you order a spring without checking that the last coil diameter matches your follower's retention feature, you'll get a spring that spins freely instead of staying seated, which causes exactly the kind of nose-diving feed failure the spring was supposed to fix.

Always measure your old spring's free length before ordering. A spring that's 1/2 inch shorter than factory spec has already lost 8-10% of its working travel, even if it looks physically intact.

Bolt-Action Box Magazine Springs: XT-22, 981T, and 25N

Marlin's bolt-action rimfire line uses detachable box magazines, and the spring geometry here is a different animal from the tube-fed guns. Instead of a straight helical coil, these springs zigzag in a flattened S-pattern inside the magazine body, stacking cartridges in a single or slightly offset column depending on magazine width.

The XT-22 and 981T both use 7-round .22LR box magazines with wire diameter around .030 inches — noticeably heavier than the tube magazine spring despite firing the same cartridge, because the working stroke is much shorter and has to generate comparable upward force over less travel.

The 25N, an older bolt-action pattern still common in used-gun racks and estate collections, uses a 7-round magazine with a slightly different spring geometry that is not interchangeable with the XT-22/981T pattern despite superficial similarity. This is the single most common misordering mistake we see — a shooter orders an XT-22 spring for a 25N magazine, and it technically fits the body but doesn't generate correct feed pressure because the coil count and pitch are wrong for that follower's travel distance.

If you're not certain which pattern your bolt-action Marlin uses, measure the magazine body length and count the original spring's visible zigzag bends — most 7-round .22LR box springs run 9-11 bends, and matching that count is a faster way to confirm compatibility than relying on model-year charts alone.

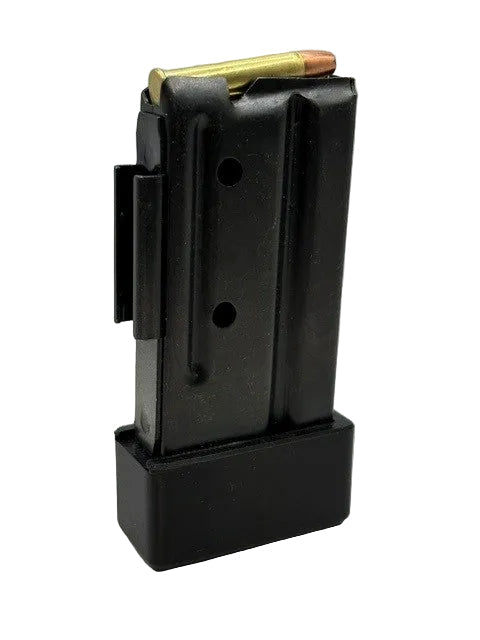

Why .22 WMR and .17 HMR Magazines Need Different Springs

Owners who run both a .22LR and a .22 WMR Marlin bolt gun often assume the magazines and springs are interchangeable since both are rimfire. They're not, and using the wrong spring here causes some of the worst feed failures we see in the shop.

The .22 WMR case measures roughly 1.35 inches overall length compared to .22LR's 0.985 inches, and it weighs close to twice as much loaded. Per SAAMI's published cartridge dimension standards, that added mass and length means a WMR magazine spring has to deliver meaningfully more force per cartridge in the stack to keep feed timing consistent with the bolt cycle. WMR magazine springs typically run .032-.036 inch wire, noticeably heavier than a comparable .22LR spring in a similarly sized magazine body.

.17 HMR, which is built on a necked-down .22 WMR case, uses magazines nearly identical in spring spec to WMR despite the lighter bullet weight, because the case dimensions and rim geometry driving the feed cycle are the same. Cross-shopping a .22LR spring into a WMR or HMR magazine because it "looks the same size" is one of the fastest ways to induce a failure-to-feed on a hunting rifle you're depending on for a clean follow-up shot.

Always order by exact caliber and model, not by visual match. The wire gauge difference between a .22LR and WMR spring is often less than a millimeter, invisible at a glance but very much felt at the range.

OEM Versus Aftermarket Springs: What Actually Matters

Not all replacement springs are built the same, and the difference isn't brand loyalty — it's dimensional accuracy and material spec. A spring that's off by even two thousandths of an inch in wire diameter, or wound with two fewer coils than factory, will feed differently even though it fits in the magazine body without issue.

When evaluating a replacement spring, check for three things:

• Material spec — music wire (ASTM A228) or chrome silicon for higher-cycle-count applications; avoid unspecified "spring steel" with no standard cited.
• Free length within 1/16 inch of factory — shorter springs lose travel, longer springs can bind against the follower or floor plate.
• Matched coil/bend count — this determines force curve across the stroke, not just total force at full compression.

We've torn down enough bargain-bin springs to know that a $3 spring with wrong dimensions is more expensive than a $12 spring built to print, because you'll pay for it again in a range trip with failures and possibly a damaged extractor from a bolt trying to strip a misfed round. US-made replacement springs manufactured to original factory tolerances cost a few dollars more but eliminate the guesswork entirely.

Step-by-Step: Replacing a Marlin Rimfire Magazine Spring

For tube magazines (Model 60/795), clear the firearm and remove the magazine tube assembly per your owner's manual. Depress the retaining button or collar at the muzzle end, and slowly ease the spring and follower out — they're under tension even fully assembled, so control the release rather than letting it fly.

1. Wipe down the tube interior with a dry cloth; remove any built-up carbon or old lubricant residue.
2. Insert the new spring coil-first, seating it fully against the tube's rear stop.
3. Attach the follower to the spring's forward end, confirming the retention tab locks into place.
4. Compress the assembly back into the tube and re-engage the retaining collar.
5. Load 2-3 dummy rounds or snap caps and cycle the action five times to confirm smooth feeding before live fire.

For box magazines (XT-22, 981T, 25N), remove the floor plate — usually a sliding tab or small screw depending on model year — and lift out the follower and spring as a unit. Note the spring's orientation before removal; box magazine springs often have an asymmetric bend pattern that only seats correctly one way.

Install the new spring, reattach the follower, and slide the floor plate back until it clicks or the screw seats flush. Load the magazine to full capacity and let it sit for several minutes before test-cycling — this lets the coils settle into their working position rather than binding on initial compression.

Break-In, Storage, and Getting Maximum Spring Life

A new spring doesn't perform at full spec straight out of the package. Most coiled springs need 15-20 full compression cycles before force output stabilizes, which is why we tell customers to load and unload a fresh magazine several times at home before trusting it on a hunt.

For storage, the long-standing worry about keeping magazines loaded for years is mostly overstated for quality spring steel — static compression causes far less fatigue than repeated cycling. That said, if you're prepping a magazine for a season of storage, downloading it by one or two rounds reduces peak stress on the top coils without meaningfully affecting readiness.

Cleaning matters more than most owners realize. Rimfire ammunition is dirty — unburned powder and lubricant residue migrate into the magazine body and coat the spring, and that buildup increases friction between coils and against the tube wall. We recommend a full strip-and-wipe every 500-1,000 rounds for range guns, and a rinse with a light solvent followed by a single drop of dry lubricant on the spring itself, never a heavy oil that will just collect more grit.

Track cycle count loosely if you can — a notebook entry or a note in a shooting log noting "magazine spring replaced" resets your mental clock and makes the next failure easier to diagnose fast instead of chasing barrel and chamber issues that aren't the actual cause.

Common Mistakes That Shorten Spring Life

The single biggest mistake is over-compressing a magazine by trying to force one extra round past rated capacity. A 7-round box magazine loaded with an 8th round under pressure stresses the top coils well beyond their designed working range and can cause a permanent set after just a handful of overloaded cycles.

The second is mixing parts across incompatible models — a 981T follower in a 25N body, or a .22LR spring stretched into service in a WMR magazine because it happened to be on hand. Even when parts physically fit, mismatched geometry creates uneven load distribution that accelerates wear on both the spring and the feed lips.

The third is neglecting cleaning until feed problems already show up. By the time carbon buildup is visibly gumming the follower's travel, the spring has usually been working harder than spec for months, quietly losing life it can't get back.

Skip these three mistakes and a quality magazine spring in a Marlin rimfire will comfortably outlast the rest of the wear parts in the gun.

If your Marlin Model 60, 795, XT-22, 981T, or 25N has started skipping rounds or failing to lock back empty, don't spend money on a whole new magazine before you've checked the spring — order the correct caliber-and-model-specific replacement spring, run the fifteen-second thumb test on every magazine you own, and get back to the range with a rifle that feeds every round the same way, every time.
