How to Properly Install a Marlin Rimfire Magazine Extension Kit for Improved Reliability

The Range Day That Exposes a Bad Extension Install

Picture a Saturday morning at the local outdoor range. Someone shows up with a Marlin XT-22 wearing a fresh 25-round extension kit they installed the night before, still smelling faintly of gun oil. Ten rounds in, the bolt locks back on a live round. Fifteen rounds later, it's a full-on double-feed that takes a cleaning rod and a fair amount of patience to clear. That rifle didn't fail because the extension kit was junk — it failed because the install skipped three steps that actually matter.

This happens constantly with rimfire shooters who treat a magazine extension kit like a snap-in accessory instead of a precision component. A Marlin rimfire magazine extension kit, installed correctly, adds real capacity without giving up reliability. Installed carelessly, it turns a dependable plinking or small-game rifle into a rifle you can't trust past the first ten rounds.

The difference between those two outcomes comes down to spring matching, feed lip integrity, and a test protocol most owners skip because they're excited to shoot. This guide walks through the entire process the way a working gun counter would teach it — not the five-minute YouTube version, but the version that accounts for what actually breaks.

What a Magazine Extension Kit Actually Changes

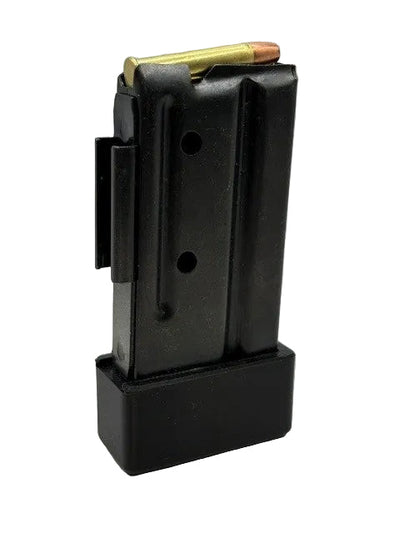

An extension kit is not just a longer piece of sheet metal or polymer bolted to the bottom of a magazine. It replaces the floorplate, lengthens the magazine body by a fixed amount (commonly adding 5, 10, or 15 rounds of capacity depending on the kit), and requires a spring rated for the added travel distance. Some kits also swap the follower for one machined to sit flush with the new body length.

Three components change as a unit: the body extension, the spring, and in most quality kits, the floorplate that locks the assembly closed. Treating these as a matched set rather than swapping one piece and reusing the rest is the single biggest factor separating a reliable extended magazine from one that jams.

Capacity gains matter for a reason beyond convenience. A hunter using a Marlin XT-22M in .22 WMR for coyote or varmint work benefits from fewer reloads during an active stand. A range shooter running drills benefits from fewer magazine changes breaking up a string. But none of that matters if the extended magazine can't feed cleanly, so capacity should never be the only thing you're evaluating when you buy a kit.

Buy from a manufacturer that publishes spring rate and cycle-life data for the specific kit, not just capacity numbers. That data tells you whether the kit was engineered for your caliber's bolt velocity or just resized from a different rimfire platform.

Which Marlin Rimfire Models Accept Extension Kits

Extension kits apply to Marlin's detachable box magazine rimfires, not the tube-fed models. The Marlin Model 60 and 60SB, for example, use a tubular magazine under the barrel, and capacity there is a function of tube length — there's no removable magazine body to extend.

Detachable box magazine models are where extension kits fit:

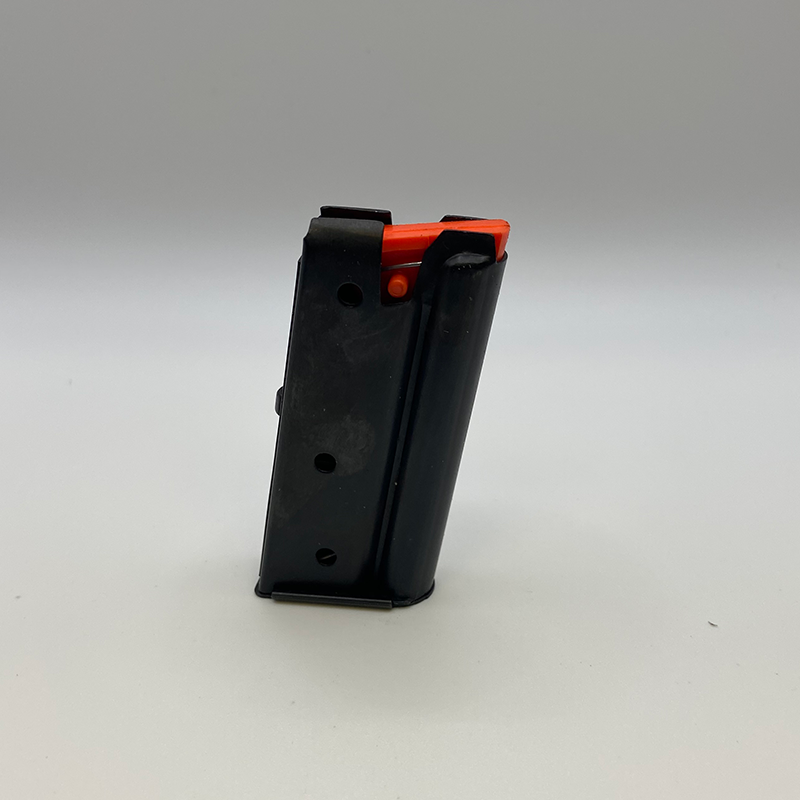

• Marlin XT-22 series (.22 LR) — the most common platform for aftermarket extension kits, with 10-round factory mags commonly extended to 20 or 25 rounds.
• Marlin XT-22M (.22 WMR) — requires a kit specifically rated for the longer, higher-pressure .22 WMR case; .22 LR extension kits will not feed WMR reliably.
• Marlin XT-17 (.17 HMR) — same caution applies; .17 HMR's higher velocity and different case taper demand a caliber-specific spring rate.
• Marlin 795 and 995 series — share magazine architecture with several other .22 LR platforms, and extension kits are widely available for this pattern.

Always confirm the kit lists your exact model and caliber on the packaging or product page. A kit that "fits most Marlin rimfire rifles" without specifying caliber is a red flag — .22 LR, .22 WMR, and .17 HMR magazines are not interchangeable despite similar exterior dimensions.

Tools and Parts to Gather Before You Start

Lay everything out before touching the magazine. Stopping mid-disassembly to hunt for a punch is how springs go flying across a shop floor.

You'll need: a set of roll pin or brass punches, a small flathead screwdriver, a magazine disassembly tool if your kit includes one (some floorplates use a spring-loaded latch that's easier to depress with a dedicated tool than a screwdriver), a clean towel or shop mat to catch small parts, and a drop of quality gun oil for the extension body's contact rails.

Beyond tools, confirm your kit box actually contains: the extension body, a matched extended spring, a compatible follower (some kits reuse the factory follower — check the instructions), and a new floorplate or latch if the kit includes one. A shocking number of return requests at magazine manufacturers trace back to a missing spring in the box rather than a defective part, so inventory the kit before you start disassembly.

Have snap caps or dummy rounds on hand for the function test later — live-fire testing a brand-new extension without first cycling dummy rounds by hand is how avoidable feed issues turn into range-day surprises.

Step-by-Step Installation Walkthrough

Start with an unloaded magazine, verified empty, on a clean work surface. Depress the floorplate latch with your punch or the tool provided in the kit, and slide the factory floorplate off the bottom of the magazine body. The factory spring and follower will want to launch out under tension — control that with your thumb as you release it.

Remove the factory spring and follower completely. Set the factory spring aside; do not plan to reuse it even if it looks fine. Wipe down the inside of the magazine body to remove any factory grease or debris that's accumulated.

Insert the new extended spring into the magazine body, seating the coiled end against the base the same way the factory spring sat. Install the follower on top of the spring, oriented exactly as the factory follower was — most followers have a directional taper that matters for feeding.

Slide the extension body onto the base of the magazine. It should seat flush with no visible gap or rocking motion. If it requires noticeable force to seat, stop — something is misaligned, and forcing it risks cracking a polymer extension body or bending the magazine's sheet metal walls.

Compress the spring down into the new extension body and lock the floorplate or latch into place, following the kit's specific mechanism. Confirm the latch clicks fully home and the floorplate doesn't shift when you tap the magazine base against your palm.

Getting Spring Tension and Feed Lips Right

Spring tension is where most reliability problems originate, and it's invisible until the magazine is loaded and cycling. An extended spring rated too light won't push rounds up fast enough during rapid cycling, causing bolt-over-round malfunctions. A spring rated too heavy can cause the follower to slam rounds into the feed lips hard enough to nose-dive the bullet tip, causing a jam on the very first round.

Match spring rate to caliber, not just to body length. A .22 WMR extension needs a stiffer spring than a same-length .22 LR extension because the WMR case is heavier and the round needs more consistent upward pressure through a faster cycle rate.

Feed lips should never be touched during an extension install. If your kit design requires spreading or reshaping the factory feed lips to accept the extension body, that's a poorly engineered kit — return it. Feed lip geometry is calibrated to the cartridge's exact dimensions, and bending them even slightly changes the angle at which the round strips off the top of the stack, which is the direct cause of stovepipe malfunctions.

After assembly, load two dummy rounds and manually cycle them by hand, watching the round's nose angle as it strips off the magazine. It should track a smooth, consistent upward arc into the chamber path without catching or tilting sideways.

Mistakes That Cause Extended Magazines to Jam

Four mistakes account for the overwhelming majority of extension-kit failures reported by rimfire shooters and gunsmiths.

• Reusing the factory spring. It's the number one cause of failures to feed in extended magazines, full stop. The factory spring was engineered for factory capacity — it cannot control a follower through 10-15 rounds of additional travel.
• Mixing caliber-specific parts. Installing a .22 LR extension kit on a .22 WMR or .17 HMR magazine because "it looked like it would fit" causes inconsistent feeding that gets worse as the magazine empties.
• Overloading past rated capacity. A 25-round extension loaded to 27 or 28 rounds by forcing extra cartridges past the spring's resistance compresses the spring beyond its designed travel and accelerates spring set.
• Skipping lubrication on contact rails. The rails where the extension body meets the follower need a light film of oil. Dry contact points cause friction that slows follower travel under rapid fire, especially in cold weather hunting conditions.

Any one of these mistakes alone can produce an intermittent malfunction that only shows up after 15-20 rounds — which is exactly why a short function check at the workbench isn't enough.

Testing Reliability Before You Trust the Magazine

Run a minimum of 50 rounds through every newly extended magazine before it goes into a hunting pack or a competition bag. Break that into three distinct tests rather than one casual range session.

First, a slow-fire string of 10 rounds at a controlled pace, watching for any hesitation in feeding or ejection. Second, a rapid string of 15 rounds fired as fast as you can safely pull the trigger, since spring dynamics under speed behave differently than under a slow, deliberate cadence. Third, load the magazine to full capacity and let it sit for 24 hours before firing the remaining rounds — this reveals whether the spring is taking an early compression set that will cause feed problems after storage, which matters if you're loading magazines ahead of a hunting season.

Track malfunctions by type and round count. A single failure to feed on round 3 out of a full magazine is worth investigating differently than a failure on round 22, which points more directly at spring fatigue near the bottom of its travel. Keep a simple log — caliber, kit brand, round count at failure, malfunction type — especially if you're outfitting more than one rifle, since patterns across multiple magazines tell you whether the issue is the kit design or your install technique.

Maintenance Schedule for Extended Magazines

Extended magazines see more spring cycles per range trip simply because they hold more rounds, and that accelerates wear compared to factory-capacity magazines used the same amount.

Clean the magazine body and wipe down the spring every 500 rounds fired through it. Rimfire ammunition runs dirtier than centerfire, and that residue builds up inside the extension body faster than most shooters expect, gradually increasing friction on the follower.

Replace the extended spring every 2,000 to 3,000 cycles rather than waiting for a malfunction to flag it. A spring that's taken a compression set doesn't always announce itself with a jam — sometimes it just shows up as slightly sluggish feeding that a shooter attributes to the rifle rather than the magazine. Mark the install date on the magazine base with a paint pen so you're tracking cycle count against a known baseline instead of guessing.

Store loaded extended magazines at reduced capacity between range sessions if they'll sit for weeks at a time. Dropping a 25-round magazine down to 20 rounds during long-term storage reduces sustained spring compression and extends spring life measurably compared to leaving it topped off indefinitely.

When to Hand It Off to a Gunsmith

Most extension kit installs are a kitchen-table job. Call in a gunsmith when the situation moves past routine assembly.

Send the magazine out if the feed lips show any visible bend or spread from a prior failure — attempting to true feed lips without the right fixtures usually makes the geometry worse, not better. Same goes for an extension body that won't seat flush after two careful attempts; forcing a third attempt risks damaging the magazine body or the rifle's magazine well.

If you're building out a hunting rifle you're staking a season on, or prepping multiple rifles for a guiding operation or a wholesale FFL customer, the cost of a gunsmith's 15-minute inspection is trivial compared to a magazine failure in the field. A gunsmith with rimfire-specific experience can also verify spring rate with a scale rather than by feel, which matters when you're outfitting several identical rifles and need consistent performance across all of them.

Before your next range trip, pull every extended magazine you own, strip it down, and confirm the spring matches the kit's rated capacity and caliber. If you can't remember when you last replaced a spring, treat that as your answer and order a fresh one today.
