Remington 783 Magazine Fitment: Short, Long & Magnum Action

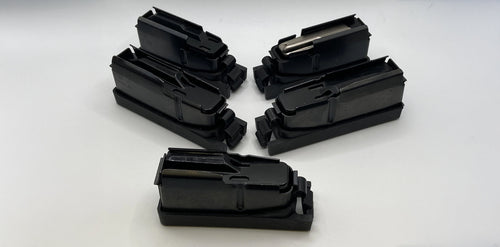

The Remington Model 783 is sold across three different action lengths — short action, long action, and magnum long action — and each one takes a different magazine. American Rifle Magazines builds factory-pattern replacements for all three, plus the .450 Bushmaster variant, made in the USA. Match your caliber below before you order; a magazine sized for the wrong action will not seat.

Action length is everything on a 783

Unlike Marlin's rimfire lineup, the 783 doesn't have model-number variants — it's one rifle sold in different chamberings, and the receiver, magazine well, and magazine body all scale to the cartridge. A short-action magazine will not fit a long-action 783, a long-action magazine will not fit a magnum, and none of them are interchangeable in the other direction. The caliber is stamped on the barrel near the receiver — check it before ordering, and if you're not certain, send us the exact caliber marking and we'll confirm the magazine.

Remington 783 short action magazine fitment chart

Your caliber	Magazine	Capacity

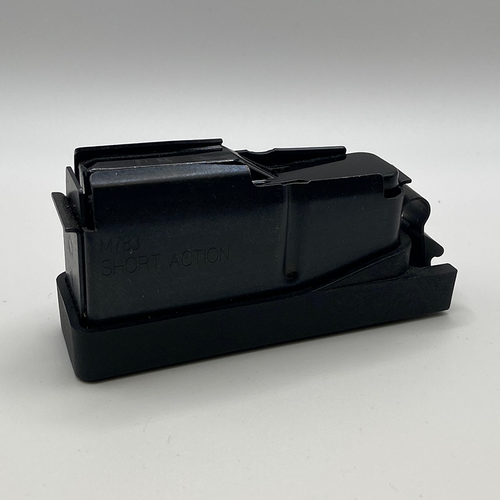

.308 Winchester, .243 Winchester, 6.5 Creedmoor	783 short action magazine	4-round

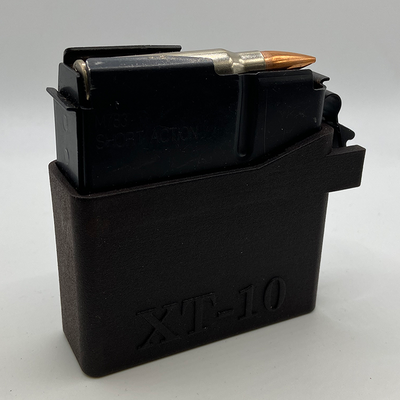

.308 Winchester, .243 Winchester, 6.5 Creedmoor — extended	783 XT short action magazine	8-round

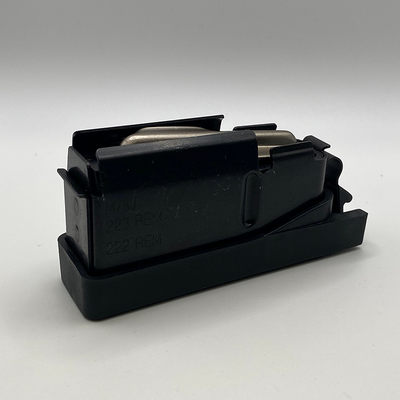

.222 Remington, .223 Remington	783 .223/.222 short action magazine	5-round
.22-250 Remington	783 .22-250 short action magazine (not currently listed)	4-round

All four of these are short-action bodies, but they are not one universal magazine — the .223/.222 magazine and the .22-250 magazine are caliber-specific and sized differently from the .308-family magazine, so match your exact caliber, not just "short action."

Remington 783 long action magazine fitment chart

Your caliber	Magazine	Capacity

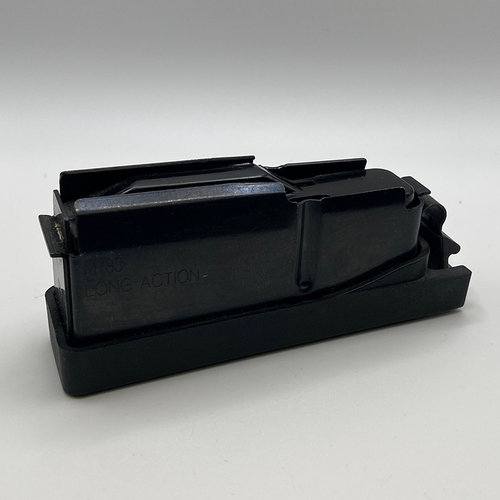

.30-06 Springfield, .270 Winchester, .25-06 Remington, .35 Whelen	783 long action magazine	4-round

The long action magazine is not compatible with short-action calibers like .308 Winchester or 7mm-08 Remington — the body is a different length. If your caliber isn't listed above or you're unsure which action your 783 is, check the caliber stamp on the barrel or contact us before ordering.

Remington 783 magnum long action magazine fitment chart

Your caliber	Magazine	Capacity

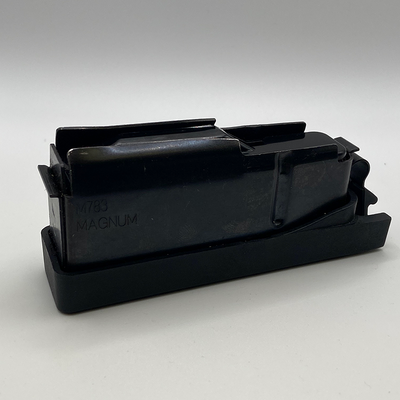

7mm Remington Magnum, .300 Winchester Magnum	783 magnum long action magazine	3-round

The magnum body is the longest of the three 783 magazine families and holds fewer rounds — 3 versus 4 in the standard long action — because the cartridge itself is longer. It is not interchangeable with the standard long-action magazine even though both are "long action" in name; the magnum body is a distinct, longer part.

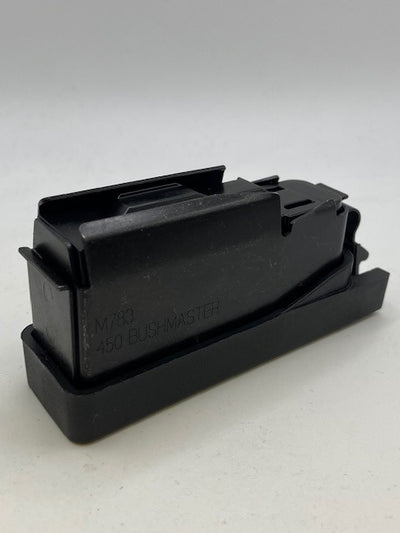

Remington 783 .450 Bushmaster

Your caliber	Magazine	Capacity
.450 Bushmaster	783 .450 Bushmaster magazine	3-round

The .450 Bushmaster round is wide, straight-walled, and built on a different case than the other 783 chamberings, so it uses its own dedicated 3-round magazine — it does not share a body with the short-action, long-action, or magnum magazines above.

Why action length, not model number

Marlin rimfire rifles are identified by a model number stamped on the barrel. The Remington 783 is identified by its caliber, because Remington built one receiver platform in multiple action lengths rather than issuing separate model numbers for each chambering. That's why every fitment question on this page starts with "what caliber is your 783 chambered in," not "what's the model number." If your 783 is a rebadged or store-brand rifle and the caliber stamp is worn, contact us with a photo of the barrel markings before you order.

Why an OEM-pattern magazine over a generic aftermarket one

• US-made, factory-pattern: every 783 magazine here is manufactured in the USA to the original Remington 783 body dimensions and feed geometry, not scaled from a generic universal design.
• Manufacturer-direct: you're ordering from the company that makes these magazines, shipped from our shop in Naugatuck, Connecticut — not a reseller.
• In stock and ready to ship: the short-action, long-action, magnum, and .450 Bushmaster magazines above are all current production.

A magazine sized even slightly wrong for your action length can bind on the follower, fail to lock into the well, or feed rounds at the wrong angle. Getting the action length and caliber right the first time avoids all of that.

Keep a spare on the range or in the field

A second magazine loaded and ready means you're not fumbling with loose rounds during a fast follow-up shot at the range or in the field. Since the short-action, long-action, and magnum bodies are all different parts, the spare has to match your specific caliber — there's no universal 783 backup magazine. Order the same part number you already have, or confirm your caliber against the tables above if you're buying your first spare.

Extended-capacity and your state's law

The 8-round XT short-action magazine holds more rounds than the standard 4-round short-action magazine. Magazine capacity limits vary by state, and a few states cap centerfire rifle magazines as well as rimfire ones. Check the magazine capacity laws by state guide before ordering an extended-capacity magazine — we can't give legal advice, so confirm the current statute for your state.

Choosing 4-round versus 8-round on a short action

If your 783 is chambered in .308 Winchester, .243 Winchester, or 6.5 Creedmoor, you have a real choice between the standard 4-round magazine and the 8-round XT version. The 4-round matches the original factory configuration and keeps the rifle's profile low and light in a blind or a pack. The 8-round XT trades a bit of that compactness for fewer reloads at the range or on a hunt where a longer string of shots matters. Both are factory-pattern magazines built for the same short-action body — the choice comes down to how you shoot, not fitment.

Remington 783 magazine FAQ

How do I know if my 783 is short action, long action, or magnum?

Match the caliber stamped on your barrel to the tables above. Short-action calibers are .308 Win, .243 Win, 6.5 Creedmoor, .223 Rem, .222 Rem, and .22-250 Rem. Long-action calibers are .30-06 Springfield, .270 Win, .25-06 Rem, and .35 Whelen. The magnum long action covers 7mm Rem Mag and .300 Win Mag. The .450 Bushmaster is its own dedicated magazine.

What magazine fits a Remington 783 in .308 Winchester?

The short-action 4-round magazine, or the 8-round XT version if you want more capacity. The same short-action body also fits .243 Winchester and 6.5 Creedmoor.

Does the 7mm Rem Mag use the same magazine as the .30-06?

No. The 7mm Rem Mag is a magnum cartridge and uses the dedicated 3-round magnum long action magazine, which is a longer body than the standard 4-round long-action magazine that fits the .30-06.

What magazine fits a Remington 783 in .223 Remington?

The 783 .223/.222 short action magazine, a 5-round magazine built specifically for that caliber — it is not the same part as the .308-family short-action magazine.

Can I use the long-action magazine in a short-action 783, or the reverse?

No. The magazine bodies are different lengths to match the cartridge overall length for each action. A long-action magazine won't seat correctly in a short-action rifle, and a short-action magazine won't hold long-action cartridges.

Order your Remington 783 magazine

Every 783 magazine here is manufactured in the USA and ships from Naugatuck, Connecticut. Browse the full Remington 783 magazine collection, or if you're stocking a shop or range, see wholesale purchasing. Not sure which action or caliber you have? Contact us and we'll match the magazine to your rifle before you order.
